Application

This device comes with the tried-and-tested, self-cleaning vibrating yarn tensioner, which reliably prevents machine stoppages. Fast threading saves time. The color-change LED stop light is an integral part of the feeder body and is clearly visible from any operator position. The enclosed feeder body prevents contamination, contactless stop motion system for yarn breakage

Main features

- Self-cleaning vibrating yarn tensioner prevents machine stoppages

- Rapid threading thanks to open eyelets

- The interchangeable yarn feed wheel

- Integrated anti-filamentation unit on yarn outlet

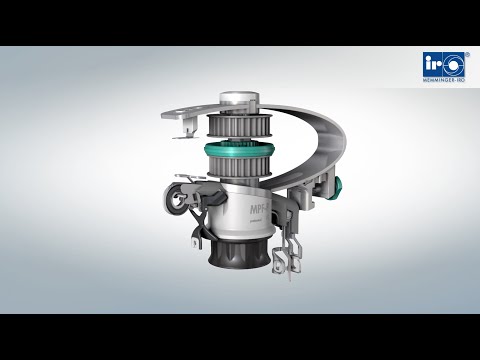

MPF P with separation feed wheel

1. Vibration tension
The vibration causes the tensioner ring to rotate against the direction of rotation in comparison with other makers. This prevents the build-up of dirt between the tension rings which are self-cleaning. No tensioner ring wear. No more fault stoppages mean that knitting machine productivity increases.

2. Winding wheel

The feeder is available with a fully enclosed feed wheel as standard or with pin type or separation feed wheel as optional. Rapid changeover.

3. Stop warning light

The large, stop warning light is an integral part of the feeder body and is clearly visible from all operator positions.

4. Integral anti-filamentation unit

When processing filament yarns capillary filaments can collect on the feed wheel and interfere with smooth yarn feed. The user can prevent this by selecting flat pulling for fibre yarns and pulling at a steep angle for filament yarns.

5. Knot catcher

This can be changed without tools. Optional - Adjustable knot catcher.

Technical data

Power supply	12/24 V AC/DC, 50 - 60 Hz
Max. current consumption with stop motion	60 mA
Number of windings	20
Yarn tension range	1,0 cN to 20 cN
Yarn gauge range	staple yarn: Nm 6 to Nm 200 filament: 8 dtex to 2000 dtex elastomers: spun, wound
