MER 3 - Elastane roller|Máy Cấp Sợi Elastane |Máy Cấp Sợi Elastane Thế Hệ Mới|Máy Cấp Sợi Elastane Công Nghiệp|Máy Cấp Sợi Elastane Cho máy Dệt Kim Tròn
Application.

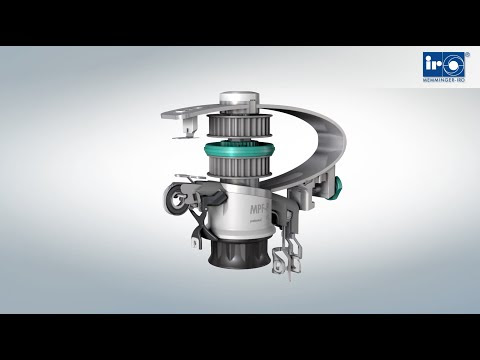

This universal elastane roller is designed for the positive feeding of plain elastane yarn to large-diameter circular knitting machines. The MER 3 makes it possible to process plain elastane at even lower yarn tensions.
Main features.
- The stop motion system has been completely redesigned for minimum yarn tensions
- The automatic adaptive electronic stop motion system is integrated in the stop motion electric circuit
- Highly versatile thanks to universal single ratio
MER 3: The components
1. Shutdown system
The shutdown system operates using the force of gravity. If the yarn breaks, contactless magnetic force trips the shutdown system.
2. Colour-change warning light
The warning light is mounted in a central, highly visible position. Yarn breakages are indicated by a colour change.
3. Cover (optional)
This protects the elastane bobbins from lint thereby reducing machine stoppages and knitting faults caused by contamination. It increases machine productivity.
Technical data
Stop motion electric circuit with yarn break Rated voltage (machine stoppage)
12/24 V AC/DC
Max. current consumption with stop motion
25 mA
Yarn tension
min. 0.8 cN
