Application

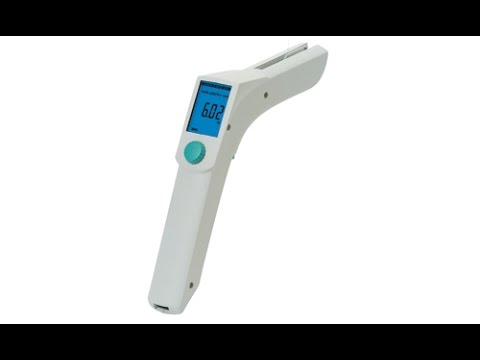

The YTM is a digital yarn tension meter for an easy way to
measure the actual yarn tension of any knitting system. In an
extended mode it can display the average and peak tension of
the measurements.

Main features

- Fabric specifications can be reliably observed and repeated without difficulty
- Reduced machine set-up time when reproducing existing articles
- Exact yarn consumption can be easily calculated

Technical data

Power supply	2 rechargeable nickel-metal-hybrid batteries 1.2 V
Charger for batteries	prim. 100 to 240 V AC, 47 - 63 Hz, sec. 5 V, 2 A DC
Digital LCD - Display	1 - 9999 metres or inches
Max. yarn speed	1000 m/min. or 900 yd/min.
Measurement range for revolutions	1 - 100 revolutions
Battery service life	approx. 50 hours of normal use
Battery standby	300 hours
Battery charging time	approx. 6 - 8 hours
Yarn tension	0 - 50 cN (normal, average or peak value)
Accuracy	+/- 1 cm or +/- 1 inch
